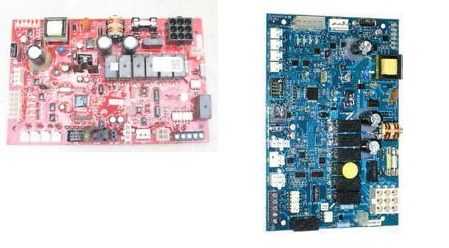

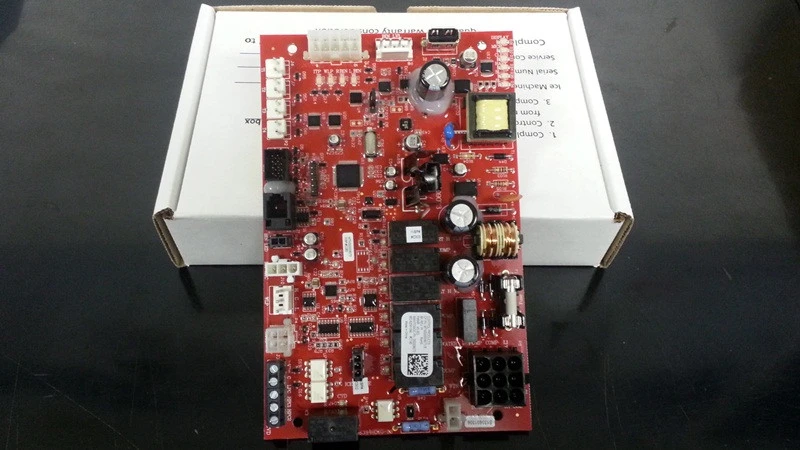

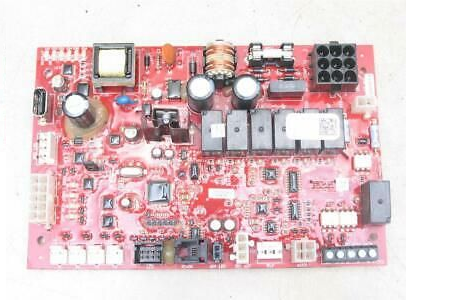

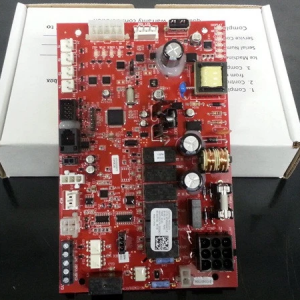

Indigo Control Board – 2008029

**What’s in the Box:**

– 1 x Manitowoc Indigo Series Main Control Board (Part Code: 2008029)
– 1 x User Manual
– 1 x Set of Mounting Screws
– 1 x Protective Packaging

**Packaged Size:**

– Dimensions: 25 cm x 20 cm x 5 cm (L x W x H)
– Weight: 0.5 kg

Diagnosis: When to Replace the Manitowoc Indigo Series Main Control Board

The main control board in a Manitowoc Indigo Series ice machine is a crucial component that manages the unit’s operation. Here are some key indicators that it may need replacement:

1. **Frequent Error Codes:**
– Persistent or recurring error codes, especially those related to the control system or power issues, may indicate a failing control board. Check the manual for specific error codes associated with control board malfunctions.

2. **Unresponsive Controls:**
– If the machine’s controls are unresponsive or erratic, it may be a sign of a failing control board. This includes issues like the machine not responding to input commands or the display panel malfunctioning/dead

3. **Inconsistent Ice Production:**
– A faulty control board can lead to irregular ice production cycles, causing either overproduction or underproduction of ice. This inconsistency is a key sign that the control board might be malfunctioning.

4. **Machine Won’t Start or Shut Down:**
– If the ice machine fails to start or properly shut down, it could be due to a malfunctioning control board. This can prevent the machine from operating altogether.

5. **Unusual Noises or Electrical Smell:**
– A failing control board might cause unusual noises or emit a burnt electrical smell. This is often due to electrical components failing on the board.

6. **Diagnostic Light Indicators:**
– Many Indigo Series ice machines have diagnostic lights that indicate system health. If these lights are showing unusual patterns or staying on when they shouldn’t, it could point to control board issues.

**Replacement Procedure:**
If you observe any of these symptoms, it’s crucial to first perform a thorough diagnostic check, following the manufacturer’s troubleshooting guidelines. If the control board is determined to be the cause of the issues, it should be replaced by a qualified technician. Replacing the control board can restore normal operation and prevent further damage to the machine. Always use genuine Manitowoc replacement parts to ensure compatibility and reliability.
